Grating 1200

This is an overview of the performance of the Belchem beamline using the 1200 l/mm grating.

• Source UE49:
• Grating: 1200 l/mm blazed grating
• Exit Slit Opening: 20 μm

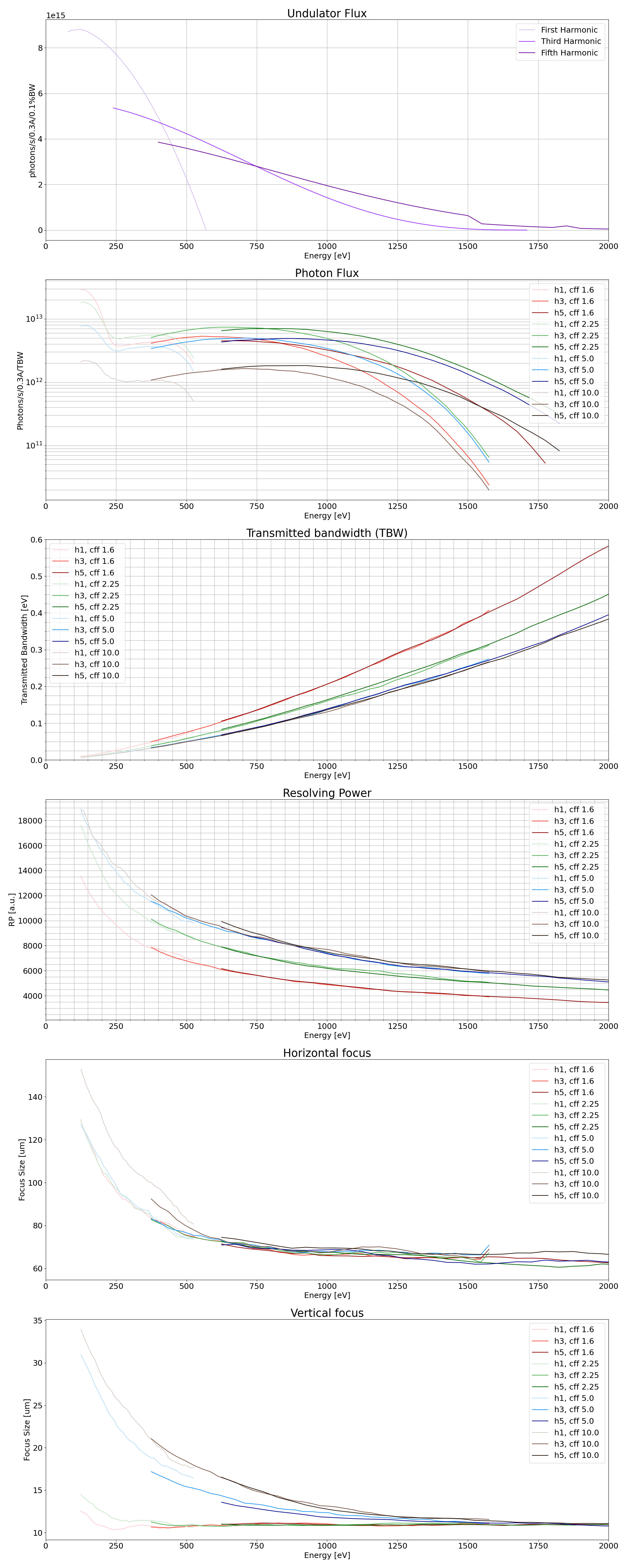

The simulations are realized using WAVE files for the undulator, and they are divided in Harmonics (1st, 3rd and 5th), and for different cff values (1.6, 2.25, 5, 10)
