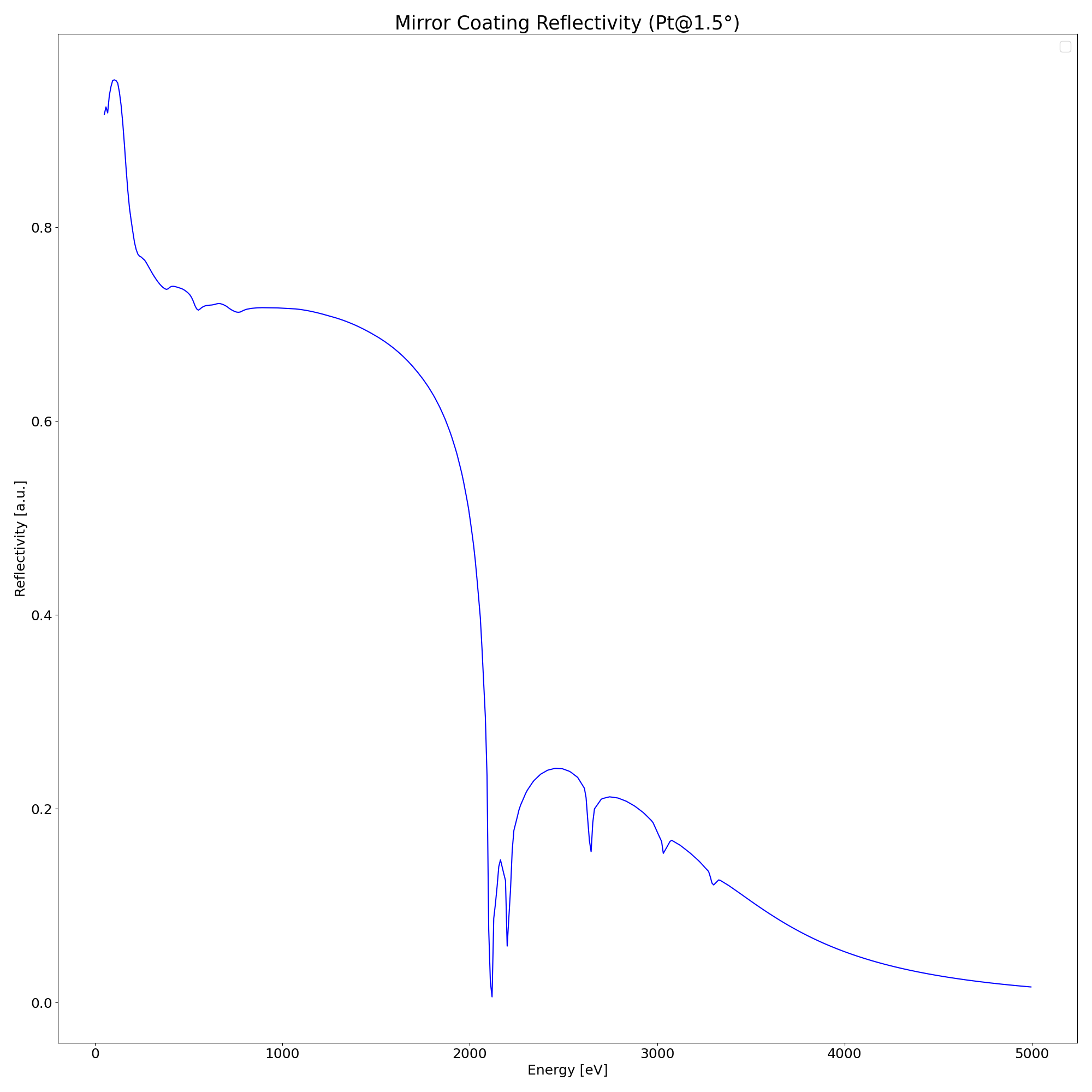

Mirror reflectivity

ALl the mirrors in the beamline are coated with Platinum and they have a grazing incident angle of 1.5°.

• m1: toroidal mirror collimating vertically and focusing horizontally on the exit slit
• m2: pre-mirror of the SX-700 monochromator
• m3: cylindrical mirror focusing vertically on the exit slits
• m4: Toroidal mirror focusing on the sample position
